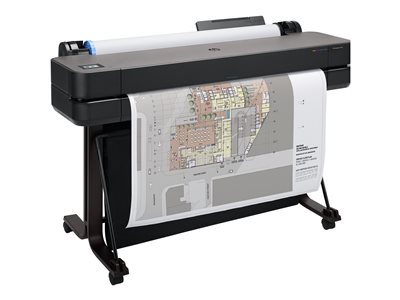

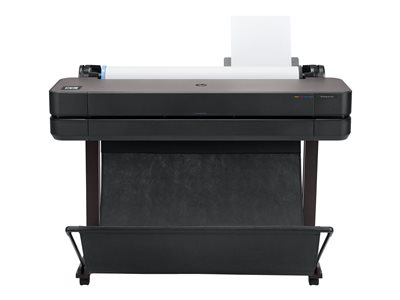

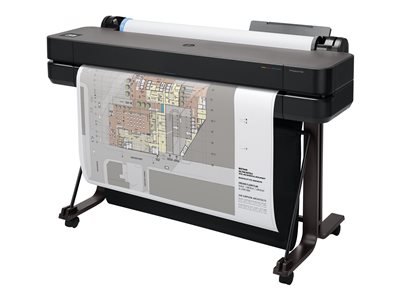

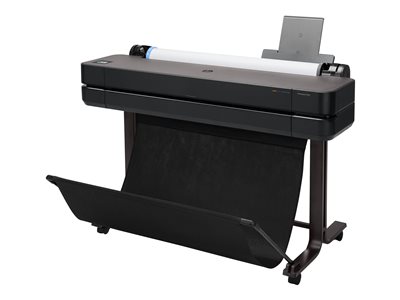

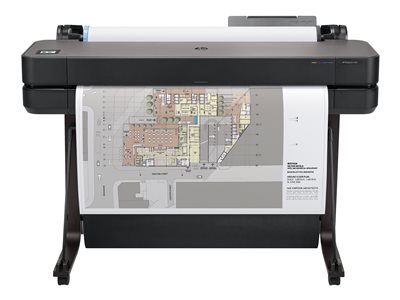

HP DesignJet T630 - 2025 Edition - storformatsskriver - farge - ink-jet

HP Inc. - Inkjet-skrivere - DesignJet T630

Art no: 5HB11D#B19

Rull A1 (61,0 cm x 45,7 m), A1 (594 x 841 mm), ANSI D (559 x 864 mm)
2400 x 1200 dpi
Kablet, Trådløs

På lager

21 119,-

Produktinformasjon levert av produsenten

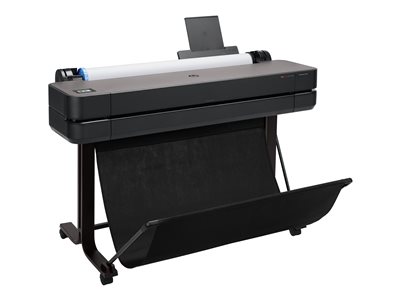

HP DesignJet T630 36-in Printer 2025 edition

Dynamic security enabled printer

Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

INTUITIVE—Easy, effortless printing

Print multi-size A3 and A0 projects automatically, without manually switching the media source.

RESPONSIBLY DESIGNED—Reduce energy and plastic use

Save 65% energy¹ with the printer on/off auto scheduler and enjoy efficient ink maintenance routines².

OPTIMIZED—Fits the way you work

Save space with the world's smallest plotters³ designed to fit your office, including a built-in stand.

914 mm

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Funksjoner	Print
Utskriftskvalitet, farger (best)	Up to 2400 x 1200 optimised dpi
Utskriftsspråk	HP-GL/2, HP-RTL, CALS G4, JPEG, URF
Utskriftsteknologi	HP Thermal Inkjet
Tilkobling, standard	Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Minne	1 GB
Internt lager	None
Fullført utskriftsbehandling	Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
Medietyper	Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Støttede papirstørrelser	Auto sheet feeder: A4, A3 manual feed: A4, A3, A2, A1, A0
Mediestørrelser, egendefinerte	Auto sheet feeder: 210 x 279 to 330 x 482 mm manual feed: 210 x 279 to 914 x 1897 mm
Medievekt, anbefalt	60 to 280 g/m² (roll/manual feed) 60 to 220 g/m² (auto sheet feeder)
Strømforbruk	<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)
Strøm	Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Luftfuktighetsområde ved drift	20 to 80% RH
Fuktighetsområde når uvirksom	0 to 95% RH
Driftstemperaturområde	5 to 40ºC
Energy star-sertifisert	Yes
Produktlogoer	AirPrint ENERGY STAR EPEAT Climate+ Gold Carbon Neutral Gold IPv6 Ready Hi-Speed USB UL Validated Wi-Fi CERTIFIED Windows 11 Compatible
Sikkerhet	USA and Canada (CSA certified) EU (LVD, EN 60950-1 and EN 62368-1 compliant) Russia, Belarus, Khazakstan (EAC) Ukraine (UA) Singapore (PSB) China (CCC) Argentina (IRAM) India (BIS) Mexico (NYCE)
Minimumsmål (B x D x H)	1317 x 605 x 932 mm
Vekt	34.7 kg

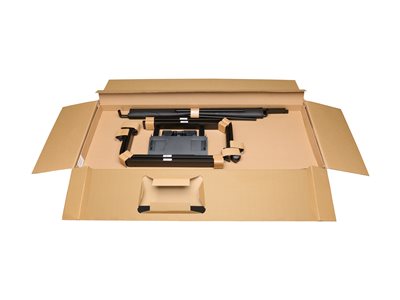

Innhold i esken	HP DesignJet T630 36-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Utskriftspatron/-flaske, Nummer	4 (C, M, Y, K) cartridges
Garanti	One-year limited hardware warranty
Akustisk effektemisjon (aktiv utskrift)	5.8 B(A) (operating), <3.4 B(A) (idle)
Akustisk trykkemisjon	42 dB(A) (operating), <16 dB(A) (idle)
Driftshøyde	Up to 3000 m

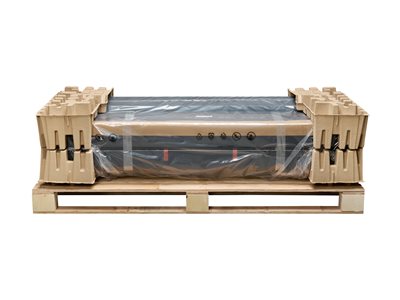

Pakningsstørrelse (B x D x H)	1470 x 575 x 590 mm
Standard mediestørrelser (metriske ruller)	279 to 914 mm
Elektromagnetisk kompatibilitet	Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI) Certified as Class B product: Korea (KCC)
Miljøsertifisering	ENERGY STAR WEEE EU RoHS EAEU RoHS REACH ErP EPEAT Climate+ Gold UL Ecologo
Blekkdråpe	5.5 pl (C, M, Y) 12 pl (K)
Blekktyper	Dye-based (C, M, Y) pigment-based (K)
Linjenøyaktighet	±0.1%⁴
Teoretisk minste linjebredde	0.02 mm
Rullenes eksterne diameter	100 mm
Maks. rullmating	1
Maksimal vekt på rull	6.2 kg
Maksimal medietykkelse (metrisk)	Up to 0.3 mm
Skriv ut flerstørrelsesfiler med ett klikk	Yes
Maksimal optisk tetthet (svart)	8 L* min/2.10 D⁵
Sideytelse for høy kapasitet (farger)	20 ml of ink yields 101 A1 pages, taking into account maintenance routines⁶
Støttede hovedprogrammer	Line drawings Presentations Renderings
Skriverkassett/flaske-volum	80 ml (K) 38 ml (K) 29 ml (C, M, Y) per cartridge
Medfølgende skriverdrivere	Raster driver for macOS and Windows, HP-GL/2 driver for Windows, HP Click Driver for Windows 11
Skrivehodedyser	1376
Skrivehoder	1 (cyan, magenta, yellow, black)
Ikke-utskrivbart område (enkeltark)	5 x 5 x 5 x 17 mm (manual feed) 5 x 5 x 5 x 5 mm (input tray)
Ikke-utskrivbart område (rullmedier)	5 x 5 x 5 x 5 mm
Utskriftsbane	HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, HP-GL/2 driver for Windows, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing
Utskriftshastighet	30 sec/page on A1, 76 A1 prints per hour⁷
Fjernutskrift aktivert	Yes
Sikkerhetsfunksjoner	HP Wolf Essential Security: Secure boot with HW root of trust Firmware Code Signature Validation Automatic FW Updates HTTPS Redirect enabled by default SNMPv1/2 read-only by default SNMPv3 disabled by default Write-protected memory HP Cartridge Security Unique password Disable USB ports TLS 1.2 802.1x IPv4 & IPv6 Compatibility CA/JD Compatibility
Medfølgende programvare	HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
Lagringstemperatur	-25 to 55ºC
Pakningsvekt	56 kg

^footnote1 The percentage reductions in energy consumption are based on tests conducted by HP, 2024. Data based on the implementation of auto-scheduled on/off usage in various printer models, measured on a monthly basis. Actual savings may vary depending on the specific usage patterns, printer models, and environmental conditions.

^footnote2 Use up to 96% less ink for routine maintenance vs. competitor. Based on HP internal testing, June 2024, comparing the HP DesignJet T200 Printer series and Canon iPF TM printer series in terms of ink used during routine printhead cleanings.

^footnote3 Based on competitive comparison of operational footprint. Test performed by Sogeti and commissioned by HP in May 2024.

^footnote4 ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC, 50-60% relative humidity, on A0 printing material in Best or Normal mode with HP Heavyweight Coated roll feed and Original HP inks.

^footnote5 With HP Premium Instant Dry Photo Gloss media with Original HP inks.

^footnote6 Calculation done taking into account two normal printhead cleanings and ink on an A1 CAD drawing with black and colour lines and a pixel coverage of 5.2%.

^footnote7 Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks. Actual performance may vary based on a variety of conditions, including but not limited to network configuration.

Produkt spesifikasjonsliste
Produktbeskrivelse	HP DesignJet T630 - 2025 Edition - storformatsskriver - farge - ink-jet
Skrivertype	36" storformatsskriver - ink-jet - farge
Lokalisering	Engelsk, Tysk, Spansk, Fransk, Italiensk / Europa
Inkjet-teknologi	HP Thermal Inkjet
Blekkpalettstøtte (farger)	For 4 blekkfarger - cyan, magenta, gul, pigmentsvart
Maks. mediestørrelse	Rull A1 (61,0 cm x 45,7 m), A1 (594 x 841 mm), ANSI D (559 x 864 mm)
Minste mediestørrelse (spesialformat)	210 mm x 279 mm
Maks mediestørrelse (tilpasset)	914 mm x 45.7 m
Utskriftshastighet	Inntil 0.5 min/side - A1 (594 x 841 mm) Inntil 0.5 min/side - ANSI D (559 x 864 mm)
Maks. oppløsning (SH)	2400 x 1200 dpi
Maks. oppløsning (farge)	2400 x 1200 dpi
Kutter	Ja
Grensesnitt	USB 2.0, Gigabit LAN, Wi-Fi(n)
AirPrint-aktivert	Ja
RAM installert (maks.)	1 GB (1 GB)
Språksimulering	HP RTL, CALS G4, HP GL/2, URF, JPEG
Mediatype	Tykt papir, fotografipapir, teknisk papir, selvklebende papir
Nettverkstilknytning	Skriverserver
Skriverfunksjoner	6,2 kg maks. rullengde
Strømforsyning	AC 100-240 V
Miljøstandarder	EPEAT Gold
Fabrikantgaranti	1-årsgaranti
Dimensjoner (BxDxH)	131.7 cm x 60.5 cm x 93.2 cm
UNSPSC	43212104 Inkjet printers
Produktkategori	Inkjet-skrivere Storformatsskrivere
